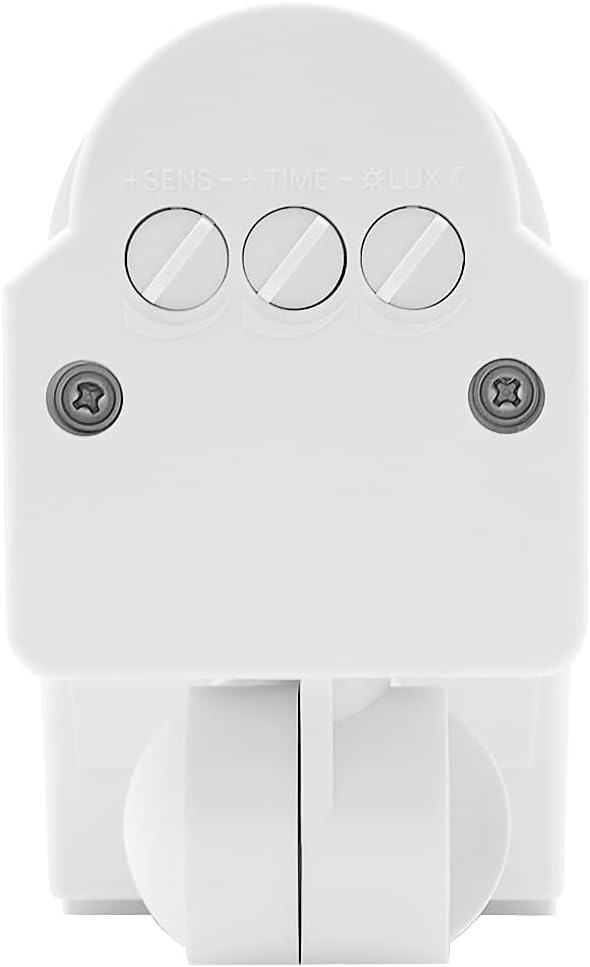

Wall PIR Motion Sensor Switch, 180°, Adjustable 2-12m, 1200W, IP44, Day Night Auto, AC 220-240V for LED Lights
Smart 180° PIR Motion Sensor for Automatic Lighting & Energy Saving
- Brand
- Unbranded
- SKU
- QS/11-ST/WB
- Warranty
- 18 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product
The QS/11-ST/WB Wall PIR Motion Sensor Switch automatically controls lighting using advanced PIR technology. Featuring 180° detection, adjustable 2–12m sensing range, 1200W load capacity, adjustable sensitivity, day/night operation, and adjustable time delay
180° Wall PIR Motion Sensor Switch with Adjustable Detection Range
The QS/11-ST/WB Wall PIR Motion Sensor Switch is an intelligent automatic lighting controller designed for residential, commercial, and industrial applications. Using advanced Passive Infrared (PIR) sensing technology, it detects human movement and automatically switches connected lights ON and OFF, improving convenience, security, and energy efficiency.
Featuring a wide 180° detection angle, adjustable sensing distance from 2 to 12 metres, adjustable sensitivity, ambient light control, and customizable delay time, the QS/11-ST/WB delivers flexible performance for a wide range of indoor and outdoor lighting applications.
⭐ Key Features
✔ High Sensitivity PIR Motion Detection
✔ Wide 180° Detection Coverage
✔ Adjustable Detection Distance (2–12 Metres)
✔ Adjustable Sensitivity Control
✔ Maximum Load up to 1200W
✔ Adjustable Time Delay (10 Seconds – 7 Minutes)
✔ Automatic Day & Night Operation
✔ Adjustable Ambient Light (LUX) Setting
✔ Surface Wall Mount Installation
✔ Low Power Consumption
✔ Energy Saving Automatic Lighting Control
⚡ Intelligent PIR Motion Detection
The integrated PIR sensor detects infrared radiation emitted by moving people. When movement is detected, the connected light switches ON immediately. If additional motion is detected before the timer expires, the delay timer automatically resets, ensuring continuous lighting while the area remains occupied.
🌙 Automatic Day & Night Operation
The adjustable LUX control allows the sensor to operate throughout the day or only when ambient light falls below the selected threshold. This minimizes unnecessary lighting during daylight hours and maximizes energy efficiency.
🎯 Adjustable Detection Sensitivity
The built-in SENS adjustment allows you to customize the detection distance from approximately 2 metres for smaller areas up to 12 metres for larger spaces, ensuring optimal performance for every installation.
⏱ Adjustable Time Delay
The lighting ON duration can be adjusted from 10 seconds (±3 seconds) to 7 minutes (±2 minutes), allowing customized operation according to your application.
🏡 Recommended Applications
Main Entrances
Driveways
Garages
Building Exteriors
Gardens
Pathways
Warehouses
Offices
Commercial Buildings
Security Lighting
📦 Package Contents
1 × QS/11-ST/WB PIR Motion Sensor
Mounting Screws & Accessories
Instruction Manual
✅ Why Choose Quick Sense QS/11?
Wide 180° PIR Detection
Adjustable 2–12m Detection Range
Adjustable Sensitivity Control
Automatic Day & Night Operation
1200W High Switching Capacity
Easy Wall Mount Installation
Reliable Energy Saving Performance
Specifications
| Time Delay | 10 Seconds (±3s) to 7 Minutes (±2min) |
|---|---|
| Ambient Light (LUX) | <10–2000 Lux Adjustable |
| Detection Sensitivity | Adjustable (2–12m) |
| Wiring | Live, Neutral & Load |
| Warm-up Time | Approx. 30 Seconds |
| Installation Type | Surface Wall Mount |
| Recommended Installation Height | 1.8–2.5 Metres |
| Model | QS/11-ST/WB |
| Colour | White |
| Warranty | 18 Months |
| Application | Automatic Lighting Control |
| Product Type | Wall PIR Motion Sensor Switch |
| Mounting Type | Surface Wall Mount |
| Detection Angle | 180° |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Passive Infrared (PIR) |
| Motion Speed | 0.6–1.5 m/s |
| Detection Angle | 180° |
| Detection Distance | Adjustable 2–12 Metres |
| Installation Height | 1.8–2.5 Metres |
| Detection Sensitivity | Adjustable |
| Operating Voltage | AC 220–240V |
| Operating Frequency | 50Hz |
| Power Consumption (Standby) | <0.9W |
| Power Consumption (Working) | <0.9W |
| Maximum Load (Incandescent Lamp) | 1200W |
| Maximum Load (Energy Saving Lamp / LED) | 300W |
| Operating Humidity | <93% RH |
| Operating Temperature | -20°C to +40°C |
