Wall PIR Motion Sensor Switch, 180° 12m, 1200W, IP44, Day Night Auto, Adjustable Delay, AC 220-240V Outdoor
180° PIR Motion Sensor Switch – 12m Range, IP44 Outdoor
- Brand
- Unbranded
- SKU
- QS/09/WB
- Warranty
- 18 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product

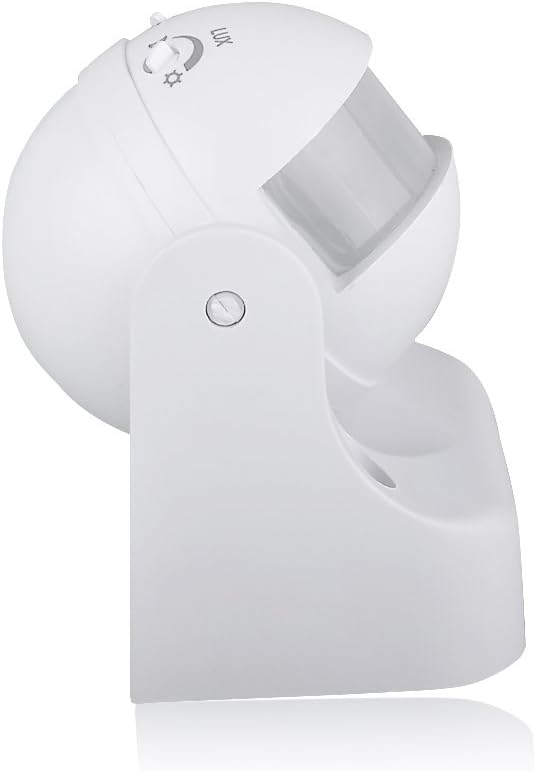

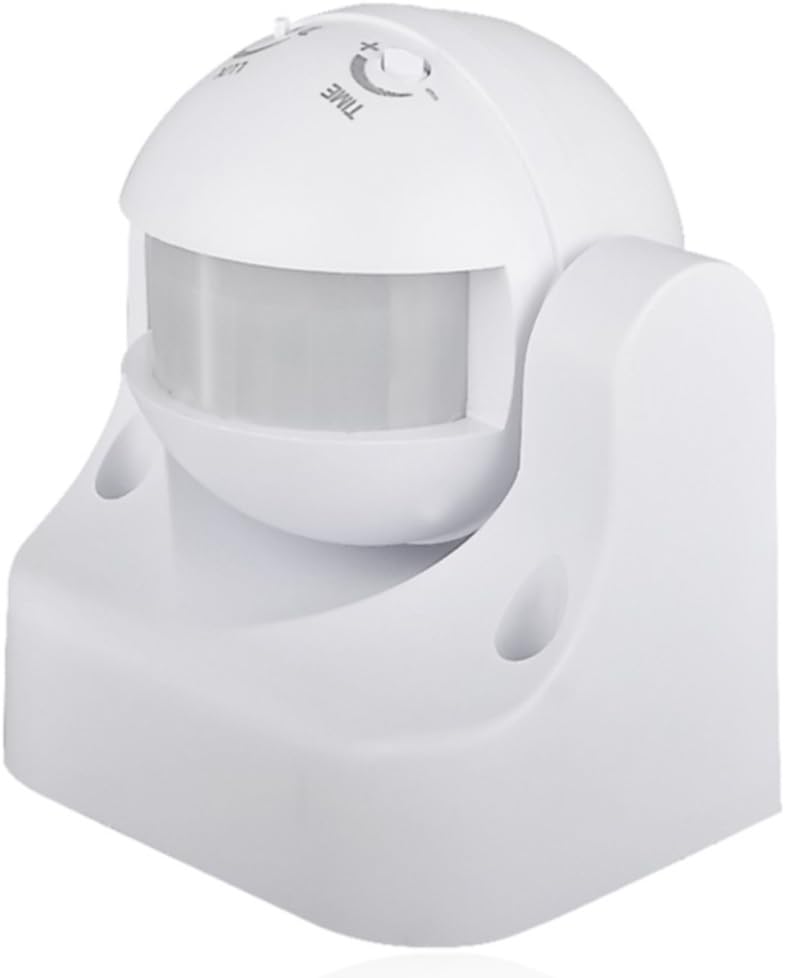

The QS/09/WB Wall PIR Motion Sensor Switch automatically controls lighting using passive infrared technology. Featuring 180° detection, 12m sensing range, 1200W load capacity, adjustable delay, day/night operation, and wall-mounted installation.

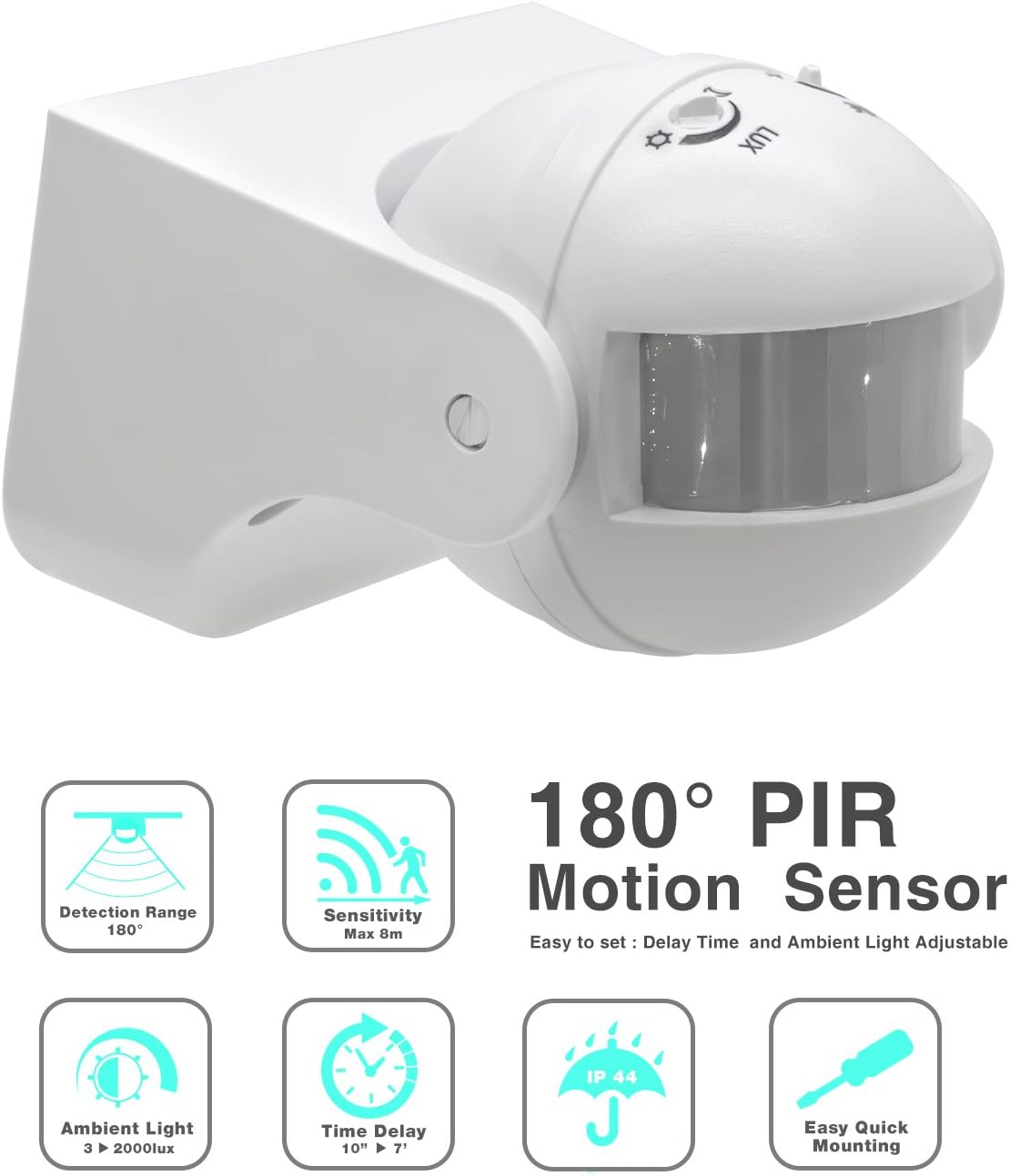

180° Wall Mount PIR Motion Sensor Switch
The QS/09/WB Wall PIR Motion Sensor Switch is an intelligent automatic lighting controller designed for residential and commercial applications. Using advanced Passive Infrared (PIR) sensing technology, it detects human movement and automatically switches connected lights ON and OFF, improving convenience, security, and energy efficiency.
With a wide 180° detection angle, up to 12 metres sensing distance, adjustable delay timer, and day/night operation, the sensor is ideal for entrances, driveways, pathways, gardens, staircases, garages, corridors, and building exteriors.
⭐ Key Features
✔ High Sensitivity PIR Motion Detection
✔ Wide 180° Detection Coverage
✔ Maximum Detection Distance up to 12 Metres
✔ 1200W Maximum Load Capacity
✔ Adjustable Time Delay (10 Seconds – 7 Minutes)
✔ Adjustable Day & Night (LUX) Control
✔ Automatic Lighting Control
✔ Low Power Consumption
✔ Surface Wall Mount Installation
✔ Energy Saving Operation
✔ Easy Installation & Maintenance
⚡ Intelligent PIR Motion Detection
The built-in PIR sensor detects infrared radiation emitted by moving people. Once movement is detected, the connected light switches ON automatically. If no further movement is detected, the light switches OFF after the selected delay time, reducing unnecessary energy consumption.
🌙 Automatic Day & Night Operation
The adjustable LUX control allows the sensor to work only at night or throughout the day according to your requirements. This helps prevent unnecessary lighting during daylight while ensuring reliable nighttime operation.

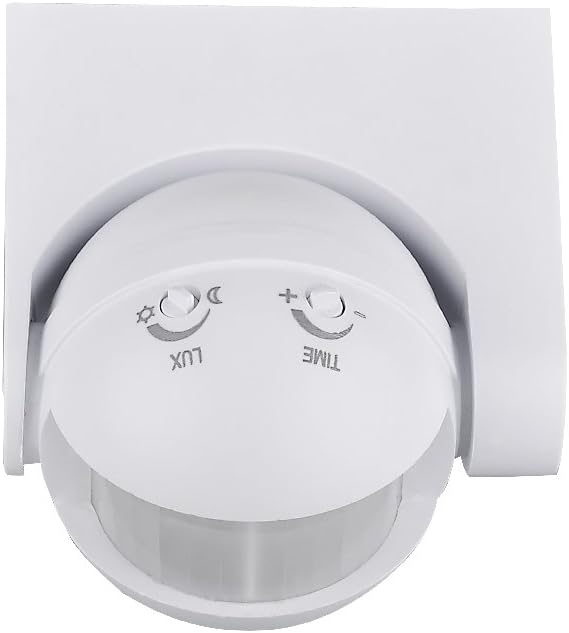

⚙ Adjustable Settings
Time Delay Adjustment
Ambient Light (LUX) Adjustment
Automatic Motion Detection
🏡 Ideal Applications
Main Entrances
Driveways
Garages
Garden Lighting
Building Exteriors
Pathways
Balconies
Corridors
Staircases
Warehouses
Commercial Buildings
Security Lighting
📦 Package Contents
1 × QS/09/WB PIR Motion Sensor
Mounting Screws & Accessories
Instruction Manual
✅ Why Choose Quick Sense QS/09?
Reliable PIR Motion Detection Technology
Wide 180° Detection Coverage
Long Detection Distance
Automatic Day & Night Operation
Energy Saving Lighting Control
Easy Wall Mount Installation
Ideal for Residential & Commercial Use
Specifications
| Time Delay | 10 Seconds ±3s to 7 Minutes ±2min |
|---|---|
| Day/Night (LUX) | <3–2000 Lux Adjustable |
| Wiring | Live, Neutral & Load |
| Warm-up Time | Approx. 30 Seconds |
| Installation Type | Surface Wall Mount |
| Recommended Installation Height | 1.8–2.5 Metres |
| Model | QS/09/WB |
| Colour | White |
| Warranty | 18 Months |
| Application | Automatic Lighting Control |
| Product Type | Wall Mount PIR Motion Sensor Switch |
| Mounting Type | Surface Wall Mount |
| Detection Angle | 180° |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Passive Infrared (PIR) |
| Motion Speed | 0.6–1.5 m/s |
| Detection Angle | 180° |
| Installation Height | 1.8–2.5 Metres |
| Maximum Detection Distance | 12 Metres (Below 24°C) |
| Operating Voltage | AC 220–240V |
| Power Consumption | Approx. 0.5W |
| Operating Frequency | 50/60Hz |
| Maximum Load (Incandescent) | 1200W |
| Maximum Load (Energy Saving Lamp) | 300W |
| Operating Humidity | <93% RH |
| Ambient Light Setting | <3–2000 Lux Adjustable |
| Operating Temperature | -20°C to +40°C |
Questions about this product
- What is the Wall PIR Motion Sensor Switch, 180° 12m, 1200W, IP44, Day Night Auto, Adjustable Delay, AC 220-240V Outdoor?
- 180° Wall Mount PIR Motion Sensor Switch The QS/09/WB Wall PIR Motion Sensor Switch is an intelligent automatic lighting controller designed for residential and commercial applications. Using advanced Passive Infrared (PIR) sensing technology , it detects human movement and automatically switches connected lights ON and OFF, improving convenience, security, and energy efficiency. With a wide 180° detection angle , up to 12 metres sensing distance , adjustable delay timer, and day/night operation, the sensor is ideal for entrances, driveways, pathways, gardens, staircases, garages, corridors, and building exteriors. ⭐ Key Features ✔ High Sensitivity PIR Motion Detection ✔ Wide 180° Detection Coverage ✔ Maximum Detection Distance up to 12 Metres ✔ 1200W Maximum Load Capacity ✔ Adjustable Time Delay (10 Seconds – 7 Minutes) ✔ Adjustable Day & Night (LUX) Control ✔ Automatic Lighting Control ✔ Low Power Consumption ✔ Surface Wall Mount Installation ✔ Energy Saving Operation ✔ Easy Installation & Maintenance ⚡ Intelligent PIR Motion Detection The built-in PIR sensor detects infrared radiation emitted by moving people. Once movement is detected, the connected light switches ON automatically. If no further movement is detected, the light switches OFF after the selected delay time, reducing unnecessary energy consumption. 🌙 Automatic Day & Night Operation The adjustable LUX control allows the sensor to work only at night or throughout the day according to your requirements. This helps prevent unnecessary lighting during daylight while ensuring reliable nighttime operation. ⚙ Adjustable Settings Time Delay Adjustment Ambient Light (LUX) Adjustment Automatic Motion Detection 🏡 Ideal Applications Main Entrances Driveways Garages Garden Lighting Building Exteriors Pathways Balconies Corridors Staircases Warehouses Commercial Buildings Security Lighting 📦 Package Contents 1 × QS/09/WB PIR Motion Sensor Mounting Screws & Accessories Instruction Manual ✅ Why Choose Quick Sense QS/09? Reliable PIR Motion Detection Technology Wide 180° Detection Coverage Long Detection Distance Automatic Day & Night Operation Energy Saving Lighting Control Easy Wall Mount Installation Ideal for Residential & Commercial Use It belongs to the PIR Sensor category.
- What is the warranty on the Wall PIR Motion Sensor Switch, 180° 12m, 1200W, IP44, Day Night Auto, Adjustable Delay, AC 220-240V Outdoor?
- Wall PIR Motion Sensor Switch, 180° 12m, 1200W, IP44, Day Night Auto, Adjustable Delay, AC 220-240V Outdoor carries 18 Months Replacement Warranty Against Manufacturing defects, against manufacturing defects.
- How do I buy the Wall PIR Motion Sensor Switch, 180° 12m, 1200W, IP44, Day Night Auto, Adjustable Delay, AC 220-240V Outdoor for my business?
- Quick Sense Innovations Private Limited supplies this product to registered businesses in India. Sign in to QuickSense to view pricing and place an order, or apply for a business account. Every order is invoiced with GST.
- What is the SKU / model number of the Wall PIR Motion Sensor Switch, 180° 12m, 1200W, IP44, Day Night Auto, Adjustable Delay, AC 220-240V Outdoor?
- The SKU is QS/09/WB.
