PIR Motion Sensor Wall Switch, 160° 9m, 3 Modes ON/OFF/AUTO, IP44, 800W, AC 220-240V for Home Staircase Lights
160° PIR Motion Sensor Wall Switch – Automatic Lighting with ON/PIR/OFF Control
- Brand
- Unbranded
- SKU
- QS/14-ST/WB
- Warranty
- 18 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product
The QS/14-ST/WB PIR Motion Sensor Wall Switch offers intelligent lighting automation with 160° motion detection, up to 9m sensing range, 3 operating modes (ON/PIR/OFF), 800W load capacity, adjustable delay, automatic day/night operation, and AC 220–240V compatibility.
PIR Motion Sensor Wall Switch with ON / PIR / OFF Modes
The QS/14-ST/WB PIR Motion Sensor Wall Switch is a compact and intelligent automatic lighting controller designed for residential and commercial applications. Using advanced Passive Infrared (PIR) sensing technology, it detects human movement and automatically controls connected lighting to improve convenience, safety, and energy efficiency.
Featuring a 160° wide detection angle, 9 metre detection range, built-in manual ON/OFF/PIR operating modes, adjustable ambient light sensitivity, and customizable delay time, the QS/14-ST/WB is an excellent solution for staircases, corridors, entrances, bedrooms, utility rooms, and home automation projects.
⭐ Key Features
✔ High Sensitivity PIR Motion Detection
✔ Wide 160° Detection Coverage
✔ Maximum Detection Distance up to 9 Metres
✔ Three Operating Modes (ON / PIR / OFF)
✔ Automatic Day & Night Operation
✔ Adjustable Ambient Light (LUX)
✔ Adjustable Time Delay (10 Seconds – 7 Minutes)
✔ 800W Maximum Switching Capacity
✔ Standard Wall Switch Design
✔ Low Power Consumption
✔ Energy Saving Automatic Lighting Control
⚡ Intelligent PIR Motion Detection
The integrated PIR sensor detects infrared energy emitted by moving people. When movement is detected, the connected light switches ON automatically. If additional movement is detected before the timer expires, the delay timer resets automatically to keep the light ON while the area remains occupied.
🔘 Three Convenient Operating Modes
ON – Light remains continuously ON.
PIR – Automatic motion sensing mode.
OFF – Light remains switched OFF.
The built-in mode selector makes the QS/14 ideal for locations where both manual and automatic lighting control are required.
🌙 Automatic Day & Night Operation
The adjustable LUX control allows the sensor to operate only in darkness or throughout the day, depending on your selected setting. This reduces unnecessary energy consumption while ensuring reliable automatic lighting.
⏱ Adjustable Time Delay
The lighting duration can be adjusted from 10 seconds (±3 seconds) up to 7 minutes (±2 minutes), allowing flexible operation based on your installation requirements.
🏡 Recommended Applications
Home Staircases
Hallways
Corridors
Bedrooms
Entrances
Garages
Living Rooms
Utility Rooms
Offices
Indoor Security Lighting
📦 Package Contents
1 × QS/14-ST/WB PIR Motion Sensor Wall Switch
Instruction Manual
✅ Why Choose Quick Sense QS/14?
Reliable PIR Motion Detection
Built-in ON / PIR / OFF Operating Modes
Wide 160° Detection Coverage
9m Detection Range
Automatic Day & Night Operation
Adjustable Delay & Ambient Light Settings
Compact Standard Wall Switch Design
Low Power Consumption
Specifications
| ON | Light Remains Continuously ON |
|---|---|
| OFF | Light Remains OFF |
| PIR | Automatic Motion Detection Mode |
| Time Delay | 10 Seconds (±3s) to 7 Minutes (±2min) |
| Ambient Light (LUX) | <10–2000 Lux Adjustable |
| Wiring | Live, Neutral & Load |
| Warm-up Time | Approx. 30 Seconds |

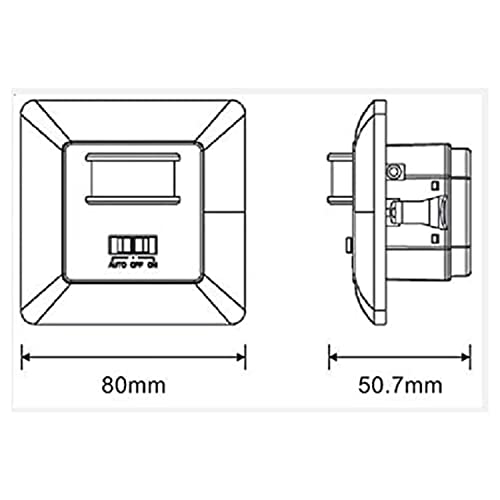

| Installation Type | Standard Wall Switch Mount |
| Recommended Installation Height | 1–1.8 Metres |
| Model | QS/14-ST/WB |
| Colour | White |
| Warranty | 18 Months |
| Application | Automatic Lighting Control |
| Product Type | PIR Motion Sensor Wall Switch |
| Mounting Type | Standard Wall Mount |
| Detection Angle | 160° |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Passive Infrared (PIR) |
| Detection Angle | 160° |
| Installation Height | 1–1.8 Metres |
| Detection Motion Speed | 0.6–1.5 m/s |
| Maximum Detection Distance | 9 Metres (Below 24°C) |
| Operating Voltage | AC 220–240V |
| Operating Frequency | 50Hz |
| Power Consumption (Standby) | <0.9W |
| Power Consumption (Working) | <0.9W |
| Maximum Load (Incandescent Lamp) | 800W |
| Maximum Load (Energy Saving Lamp / LED) | 400W |
| Operating Humidity | <93% RH |
| Operating Temperature | -20°C to +40°C |
Questions about this product
- What is the PIR Motion Sensor Wall Switch, 160° 9m, 3 Modes ON/OFF/AUTO, IP44, 800W, AC 220-240V for Home Staircase Lights?
- PIR Motion Sensor Wall Switch with ON / PIR / OFF Modes The QS/14-ST/WB PIR Motion Sensor Wall Switch is a compact and intelligent automatic lighting controller designed for residential and commercial applications. Using advanced Passive Infrared (PIR) sensing technology , it detects human movement and automatically controls connected lighting to improve convenience, safety, and energy efficiency. Featuring a 160° wide detection angle , 9 metre detection range , built-in manual ON/OFF/PIR operating modes, adjustable ambient light sensitivity, and customizable delay time, the QS/14-ST/WB is an excellent solution for staircases, corridors, entrances, bedrooms, utility rooms, and home automation projects. ⭐ Key Features ✔ High Sensitivity PIR Motion Detection ✔ Wide 160° Detection Coverage ✔ Maximum Detection Distance up to 9 Metres ✔ Three Operating Modes (ON / PIR / OFF) ✔ Automatic Day & Night Operation ✔ Adjustable Ambient Light (LUX) ✔ Adjustable Time Delay (10 Seconds – 7 Minutes) ✔ 800W Maximum Switching Capacity ✔ Standard Wall Switch Design ✔ Low Power Consumption ✔ Energy Saving Automatic Lighting Control ⚡ Intelligent PIR Motion Detection The integrated PIR sensor detects infrared energy emitted by moving people. When movement is detected, the connected light switches ON automatically. If additional movement is detected before the timer expires, the delay timer resets automatically to keep the light ON while the area remains occupied. 🔘 Three Convenient Operating Modes ON – Light remains continuously ON. PIR – Automatic motion sensing mode. OFF – Light remains switched OFF. The built-in mode selector makes the QS/14 ideal for locations where both manual and automatic lighting control are required. 🌙 Automatic Day & Night Operation The adjustable LUX control allows the sensor to operate only in darkness or throughout the day, depending on your selected setting. This reduces unnecessary energy consumption while ensuring reliable automatic lighting. ⏱ Adjustable Time Delay The lighting duration can be adjusted from 10 seconds (±3 seconds) up to 7 minutes (±2 minutes) , allowing flexible operation based on your installation requirements. 🏡 Recommended Applications Home Staircases Hallways Corridors Bedrooms Entrances Garages Living Rooms Utility Rooms Offices Indoor Security Lighting 📦 Package Contents 1 × QS/14-ST/WB PIR Motion Sensor Wall Switch Instruction Manual ✅ Why Choose Quick Sense QS/14? Reliable PIR Motion Detection Built-in ON / PIR / OFF Operating Modes Wide 160° Detection Coverage 9m Detection Range Automatic Day & Night Operation Adjustable Delay & Ambient Light Settings Compact Standard Wall Switch Design Low Power Consumption It belongs to the PIR Sensor category.
- What is the warranty on the PIR Motion Sensor Wall Switch, 160° 9m, 3 Modes ON/OFF/AUTO, IP44, 800W, AC 220-240V for Home Staircase Lights?
- PIR Motion Sensor Wall Switch, 160° 9m, 3 Modes ON/OFF/AUTO, IP44, 800W, AC 220-240V for Home Staircase Lights carries 18 Months Replacement Warranty Against Manufacturing defects, against manufacturing defects.
- How do I buy the PIR Motion Sensor Wall Switch, 160° 9m, 3 Modes ON/OFF/AUTO, IP44, 800W, AC 220-240V for Home Staircase Lights for my business?
- Quick Sense Innovations Private Limited supplies this product to registered businesses in India. Sign in to QuickSense to view pricing and place an order, or apply for a business account. Every order is invoiced with GST.
- What is the SKU / model number of the PIR Motion Sensor Wall Switch, 160° 9m, 3 Modes ON/OFF/AUTO, IP44, 800W, AC 220-240V for Home Staircase Lights?
- The SKU is QS/14-ST/WB.
