Digital Temperature Controller Thermostat, -50 to 110°C, 220V, 10A, with Probe for Aquarium Incubator Fridge
Digital Temperature Control for Heating & Cooling Applications
- Brand
- Unbranded
- SKU
- QS/TC01-HQ/WB
- Warranty
- 6 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product

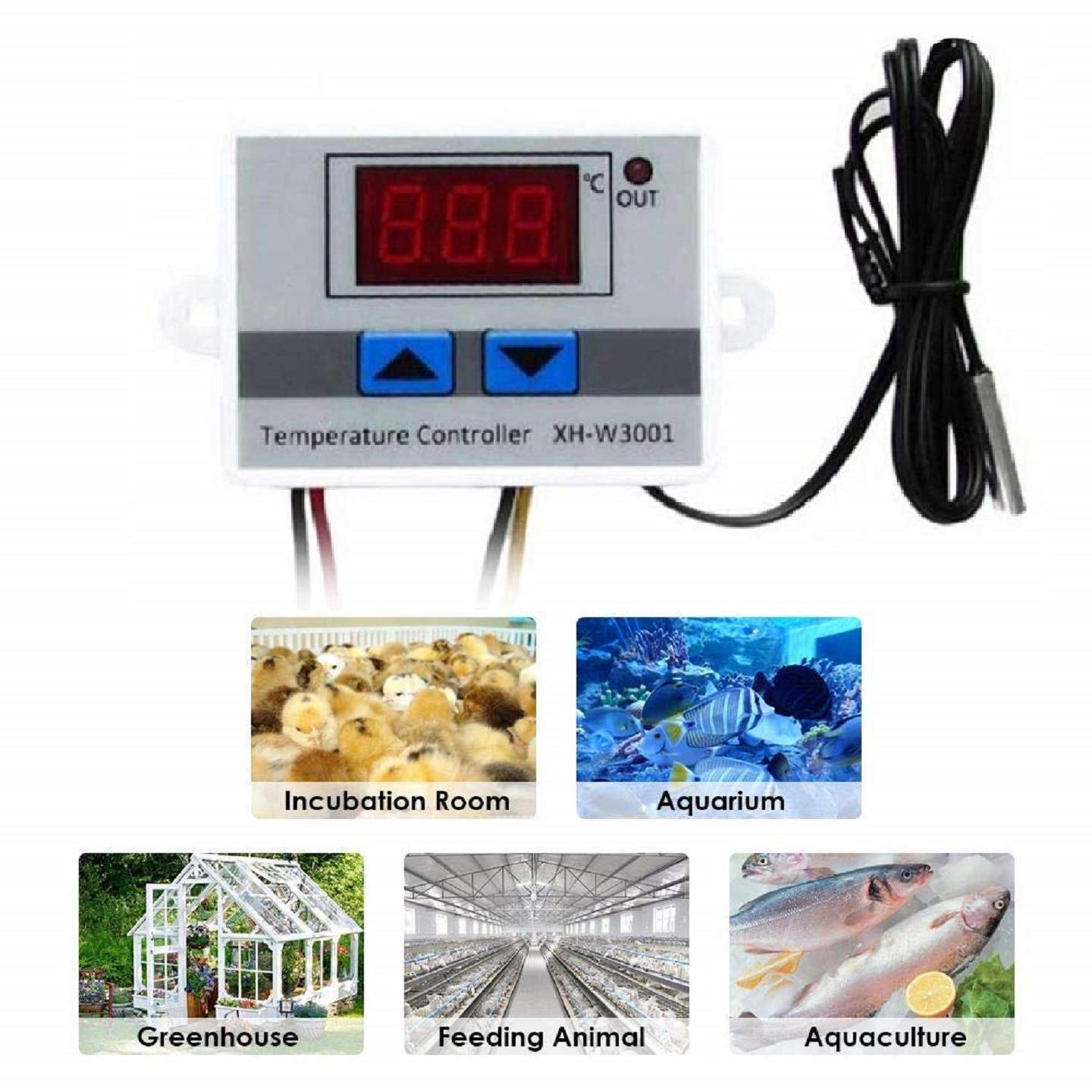

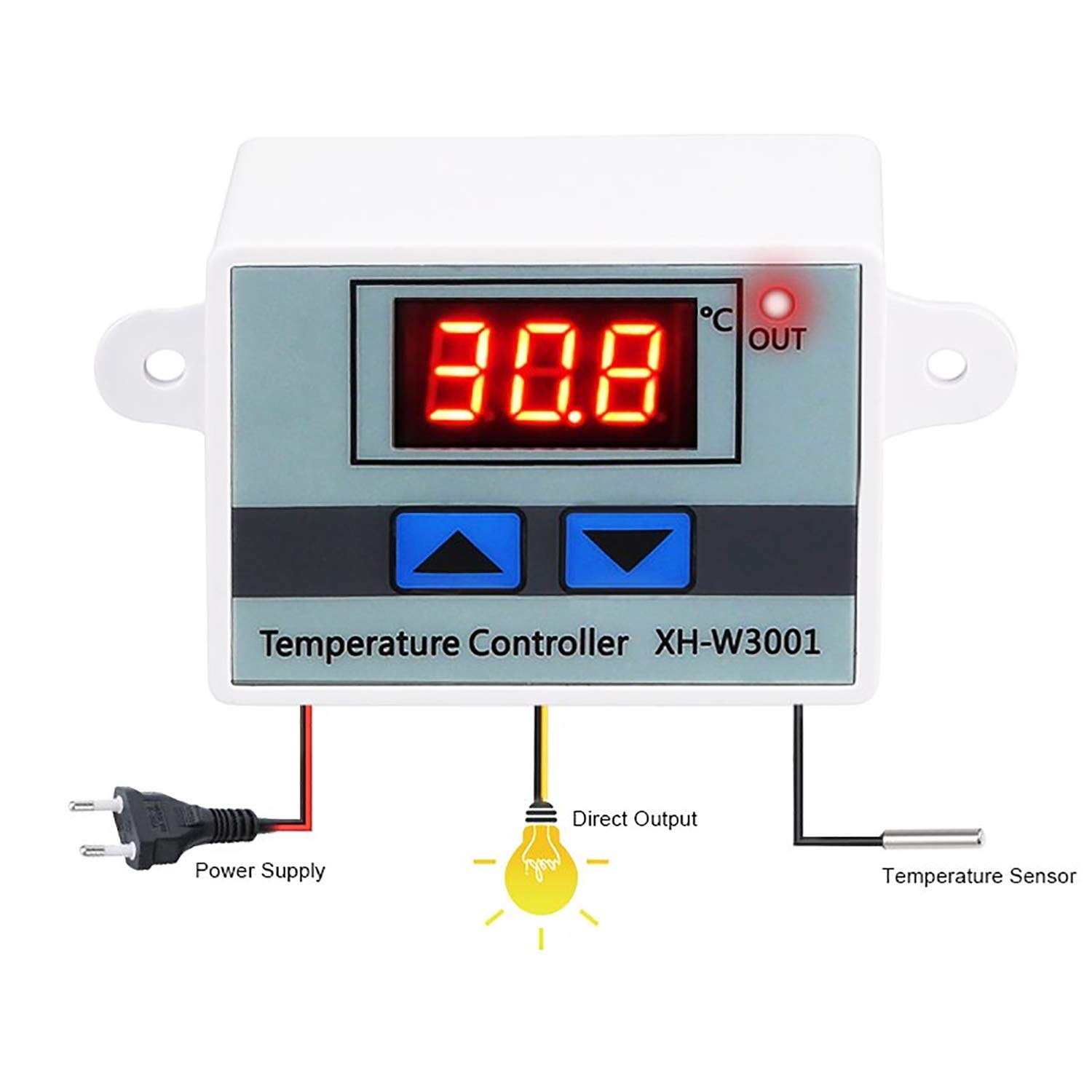

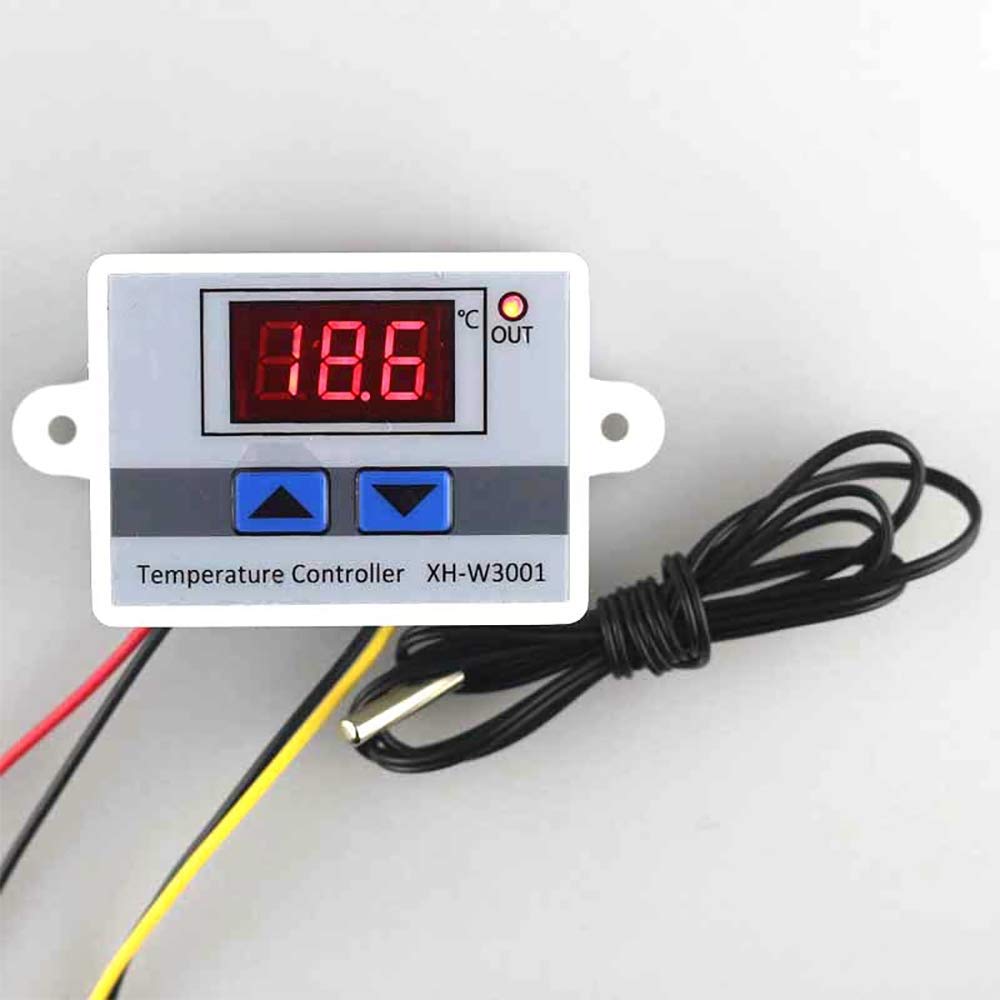

The XH-W3001 Digital Temperature Controller provides convenient and accurate temperature control for various heating and cooling applications. With a temperature range of -50°C to 110°C, digital LED display and external temperature probe, it allows easy monitoring and temperature adjustment.
Digital Temperature Controller with Waterproof NTC10K Probe
The QS/TC01-HQ/WB Digital Temperature Controller is a compact temperature monitoring and control device designed for applications requiring automatic heating and refrigeration control. It measures and displays temperature while allowing the user to set upper and lower temperature limits.
The controller uses an NTC10K waterproof temperature probe with a 1-metre cable for temperature sensing. Its digital display provides a clear view of the detected temperature, while the simple button-based interface allows the starting and stopping temperature values to be adjusted according to the application.
⭐ Key Features
✔ Digital Temperature Measurement & Display
✔ Heating & Refrigeration Control
✔ Adjustable Starting Temperature
✔ Adjustable Stop Temperature
✔ NTC10K Waterproof Temperature Probe
✔ 1 Metre Probe Cable
✔ Measuring Accuracy of ±0.2°C
✔ Control Precision of ±0.1°C
✔ 220V Input Voltage
✔ Maximum Current up to 10A
✔ 1500W Power Rating
✔ Compact 60 × 45 × 31 mm Design
✔ Simple Button Operation
✔ Easy Installation
🌡️ Digital Temperature Monitoring
The QS/TC01 continuously measures the temperature through its connected NTC10K waterproof probe and displays the detected temperature on the digital display. This allows the user to monitor the temperature clearly during operation.
⚙ Adjustable Temperature Control
The controller allows separate temperature values to be configured for starting and stopping the controlled output. Press the UP button to view and adjust the starting temperature, and use the DOWN button to view and adjust the stopping temperature.
🔥 Heating & Refrigeration Control
The QS/TC01 is designed for both heating and refrigeration control. The adjustable temperature limits allow the controller to be configured according to the required temperature-control application.
💧 Waterproof NTC10K Probe
The controller comes with an NTC10K L=1m waterproof probe for temperature measurement. The waterproof probe design makes it suitable for applications where the sensing element may need to be positioned away from the controller.
📊 Accurate Temperature Control
Measuring Accuracy: ±0.2°C
Control Precision: ±0.1°C
This combination provides precise temperature monitoring and controlled operation within the specified range.
🏭 Recommended Applications
Seafood Machines
Heating Equipment
Refrigeration Equipment
Temperature-Controlled Systems
Cold Storage Applications
Temperature Monitoring Systems
DIY Temperature Control Projects
📦 Product Contents
1 × QS/TC01 Temperature Controller
1 × NTC10K Waterproof Temperature Probe
✅ Why Choose Quick Sense QS/TC01?
Digital Temperature Display
Heating & Refrigeration Control
Adjustable Start & Stop Temperature
Waterproof NTC10K Probe
±0.2°C Measuring Accuracy
±0.1°C Control Precision
Compact Design
Simple Operation
Easy Installation
Specifications
| Model | QS/TC01-HQ/WB |
|---|---|
| Product Type | Temperature Controller |
| Display | Digital |
| Control Function | Heating & Refrigeration |
| Temperature Probe | NTC10K Waterproof Probe |
| Probe Cable Length | 1 Metre |
| Installation | Easy Installation |
| Product Size | 60 × 45 × 31 mm |
| Measurement Range | 50°C to 110°C |
| Control Range | -50°C to 110°C |
| Measuring Accuracy | ±0.2°C |
| Control Precision | ±0.1°C |
| Measuring Input | NTC10K |
| Probe Type | Waterproof |
| Probe Length | 1m |
| Input Voltage | 220V |
| Maximum Current | 10A |
| Power | 1500W |
| Temperature Measurement | Yes |
| Temperature Display | Yes |
| Refrigeration Control | Yes |
| Heating Control | Yes |
| Start Temperature Setting | Yes |
| Stop Temperature Setting | Yes |
| Upper Temperature Limit Setting | Yes |
| Lower Temperature Limit Setting | Yes |
| Probe Type | NTC10K |
| Probe | Waterproof |
| Probe Cable Length | 1m |
| Measuring Input | NTC10K L=1m Waterproof Probe |
| UP Button | View/set starting temperature |
| DOWN Button | View/set stopping temperature |
| Long Press UP | Start-temperature display flashes for setting |
| Long Press DOWN | Stop-temperature display flashes for setting |
| UP/DOWN | Adjust temperature value |
| Width | 60 mm |
| Height | 45 mm |
| Depth | 31 mm |
| Probe Cable | 1m |
Questions about this product
- What is the Digital Temperature Controller Thermostat, -50 to 110°C, 220V, 10A, with Probe for Aquarium Incubator Fridge?
- Digital Temperature Controller with Waterproof NTC10K Probe The QS/TC01-HQ/WB Digital Temperature Controller is a compact temperature monitoring and control device designed for applications requiring automatic heating and refrigeration control . It measures and displays temperature while allowing the user to set upper and lower temperature limits. The controller uses an NTC10K waterproof temperature probe with a 1-metre cable for temperature sensing. Its digital display provides a clear view of the detected temperature, while the simple button-based interface allows the starting and stopping temperature values to be adjusted according to the application. ⭐ Key Features ✔ Digital Temperature Measurement & Display ✔ Heating & Refrigeration Control ✔ Adjustable Starting Temperature ✔ Adjustable Stop Temperature ✔ NTC10K Waterproof Temperature Probe ✔ 1 Metre Probe Cable ✔ Measuring Accuracy of ±0.2°C ✔ Control Precision of ±0.1°C ✔ 220V Input Voltage ✔ Maximum Current up to 10A ✔ 1500W Power Rating ✔ Compact 60 × 45 × 31 mm Design ✔ Simple Button Operation ✔ Easy Installation 🌡️ Digital Temperature Monitoring The QS/TC01 continuously measures the temperature through its connected NTC10K waterproof probe and displays the detected temperature on the digital display. This allows the user to monitor the temperature clearly during operation. ⚙ Adjustable Temperature Control The controller allows separate temperature values to be configured for starting and stopping the controlled output. Press the UP button to view and adjust the starting temperature, and use the DOWN button to view and adjust the stopping temperature. 🔥 Heating & Refrigeration Control The QS/TC01 is designed for both heating and refrigeration control . The adjustable temperature limits allow the controller to be configured according to the required temperature-control application. 💧 Waterproof NTC10K Probe The controller comes with an NTC10K L=1m waterproof probe for temperature measurement. The waterproof probe design makes it suitable for applications where the sensing element may need to be positioned away from the controller. 📊 Accurate Temperature Control Measuring Accuracy: ±0.2°C Control Precision: ±0.1°C This combination provides precise temperature monitoring and controlled operation within the specified range. 🏭 Recommended Applications Seafood Machines Heating Equipment Refrigeration Equipment Temperature-Controlled Systems Cold Storage Applications Temperature Monitoring Systems DIY Temperature Control Projects 📦 Product Contents 1 × QS/TC01 Temperature Controller 1 × NTC10K Waterproof Temperature Probe ✅ Why Choose Quick Sense QS/TC01? Digital Temperature Display Heating & Refrigeration Control Adjustable Start & Stop Temperature Waterproof NTC10K Probe ±0.2°C Measuring Accuracy ±0.1°C Control Precision Compact Design Simple Operation Easy Installation It belongs to the Temperature Controller category.
- What is the warranty on the Digital Temperature Controller Thermostat, -50 to 110°C, 220V, 10A, with Probe for Aquarium Incubator Fridge?
- Digital Temperature Controller Thermostat, -50 to 110°C, 220V, 10A, with Probe for Aquarium Incubator Fridge carries 6 Months Replacement Warranty Against Manufacturing defects, against manufacturing defects.
- How do I buy the Digital Temperature Controller Thermostat, -50 to 110°C, 220V, 10A, with Probe for Aquarium Incubator Fridge for my business?
- Quick Sense Innovations Private Limited supplies this product to registered businesses in India. Sign in to QuickSense to view pricing and place an order, or apply for a business account. Every order is invoiced with GST.
- What is the SKU / model number of the Digital Temperature Controller Thermostat, -50 to 110°C, 220V, 10A, with Probe for Aquarium Incubator Fridge?
- The SKU is QS/TC01-HQ/WB.
Supplied by Quick Sense Innovations Private Limited — Faridabad, Haryana, India
