5.8GHz Microwave Radar Motion Sensor Switch, 360°, 1-8m, 1200W, Day Night Auto, AC 220-240V Wall/Ceiling
Smart 5.8GHz Microwave Motion Sensor for Automatic & Energy-Efficient Lighting Control
- Brand
- Unbranded
- SKU
- QS/M1-ST/WB
- Warranty
- 18 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product
The Quick Sense QS/M1-ST/WB 5.8GHz Microwave Radar Motion Sensor Switch automatically controls lighting by detecting movement through microwave radar technology. Featuring 360° detection, adjustable 1–8m sensing range, day/night operation, adjustable time delay, and wall or ceiling installation.

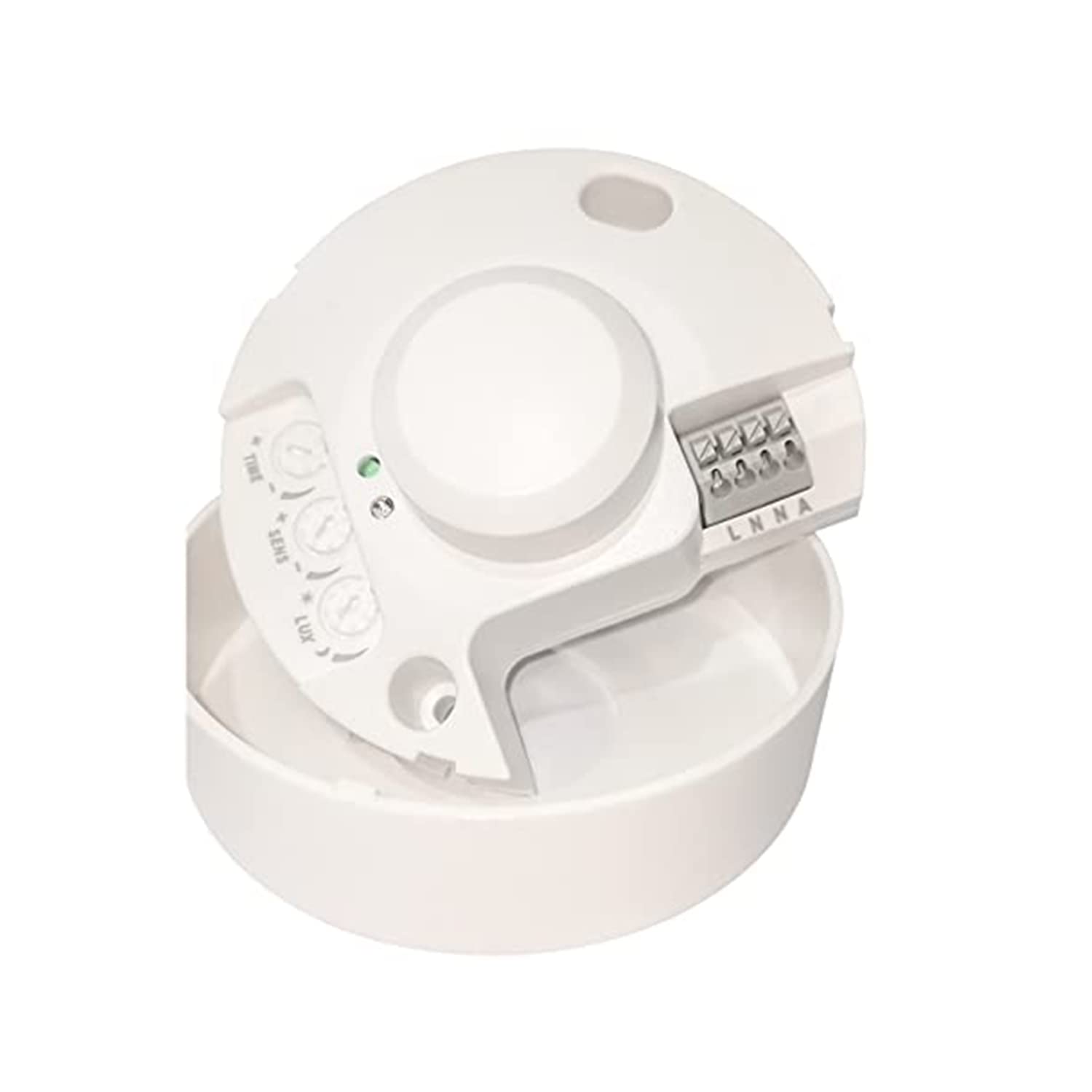

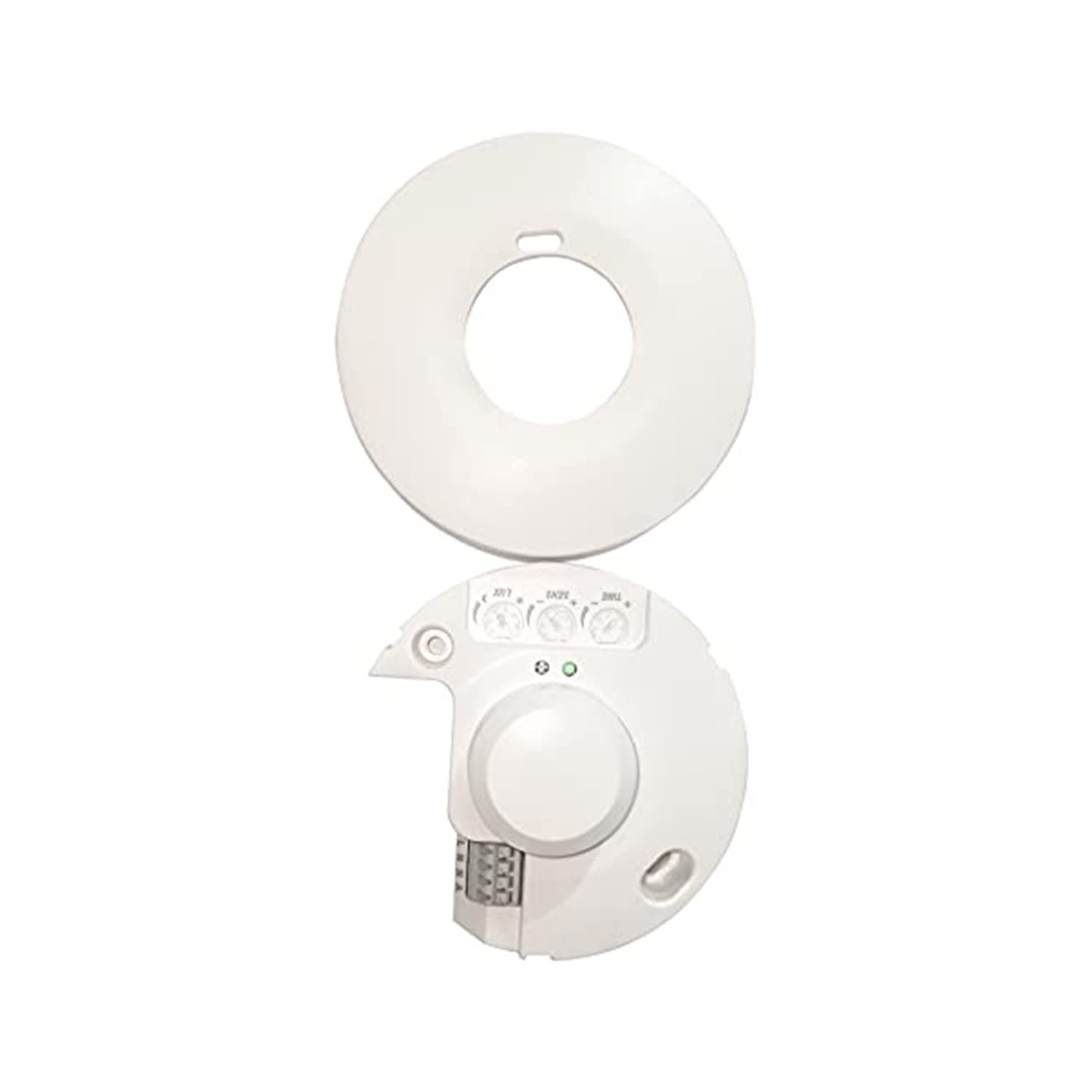

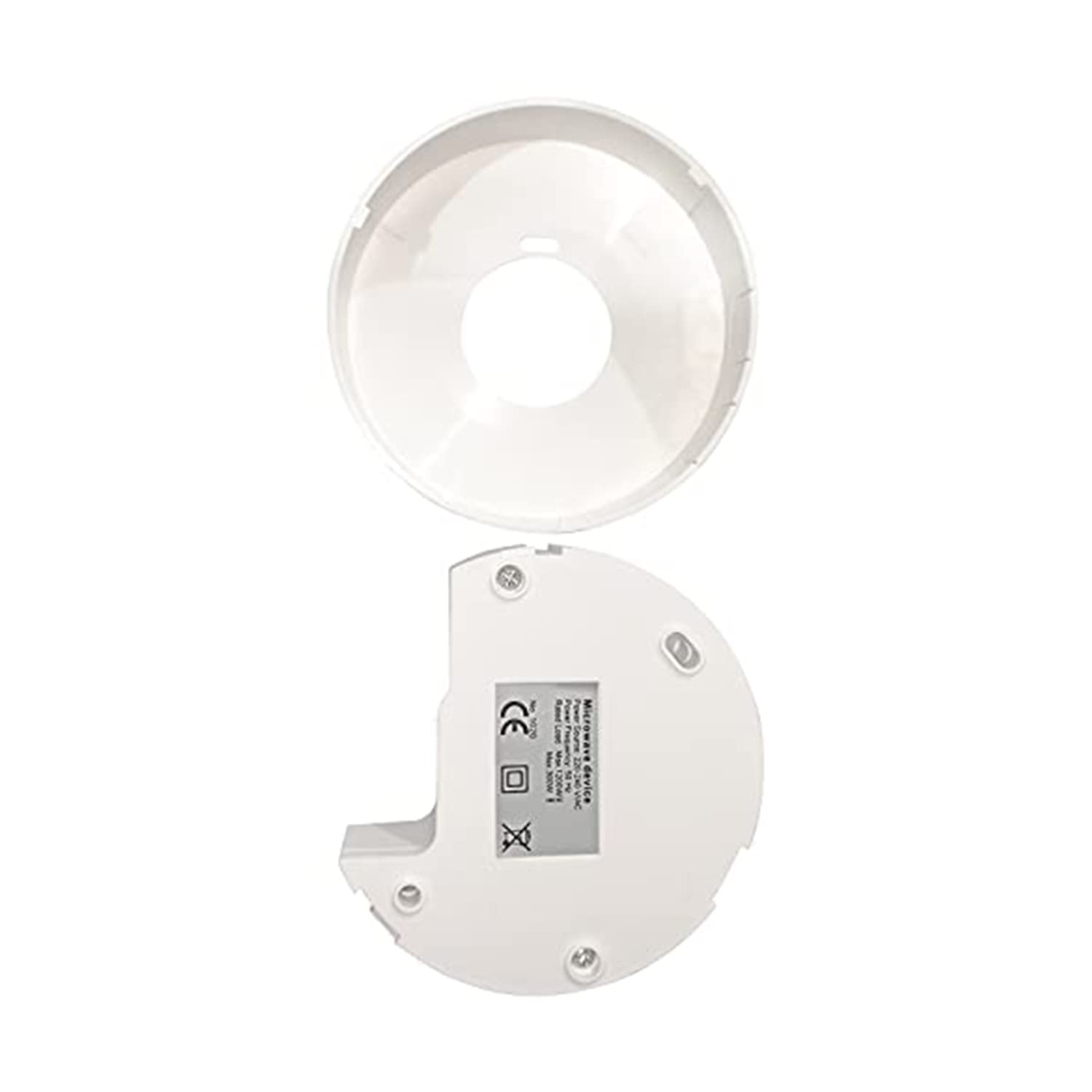

5.8GHz Microwave Radar Motion Sensor Switch
The QS/M1-ST/WB Microwave Radar Motion Sensor Switch is an advanced automatic lighting controller that uses 5.8GHz high-frequency microwave radar technology to detect human movement with exceptional accuracy. Unlike conventional PIR sensors, microwave technology provides wider coverage and can detect movement through glass, doors, and other thin non-metallic materials.
Designed for both wall and ceiling installation, the sensor automatically switches connected lights ON when movement is detected and turns them OFF after the preset delay, reducing unnecessary energy consumption while improving convenience and security.
⭐ Key Features
✔ Advanced 5.8GHz Microwave Radar Detection
✔ 360° Wide Detection Coverage
✔ Adjustable Detection Distance (1–8m)
✔ Automatic Day & Night Operation
✔ Adjustable Time Delay
✔ Adjustable Ambient Light (LUX) Setting
✔ Ceiling & Wall Mount Installation
✔ Low Power Consumption
✔ High Detection Accuracy
✔ Ideal for Residential & Commercial Lighting Automation
⚡ Smart Motion Detection
The built-in 5.8GHz CW microwave radar sensor continuously monitors the surrounding area. When movement is detected within the sensing range, it instantly activates the connected load. After no motion is detected for the selected delay time, the light automatically switches OFF, saving electricity without compromising convenience.
🌙 Intelligent Day & Night Sensor
The adjustable LUX control allows the sensor to operate only when required. Set it to work only at night or throughout the day depending on your application, ensuring maximum energy efficiency.
⚙ Adjustable Settings
Detection Distance Adjustment
Time Delay Adjustment
Ambient Light (LUX) Adjustment
Suitable for Different Installation Environments
🏠 Recommended Applications
Homes & Apartments
Offices
Staircases
Corridors
Parking Areas
Warehouses
Washrooms
Basements
Commercial Buildings
Storage Rooms
📦 Package Contents
1 × QS/M1-ST/WB Microwave Motion Sensor
1 × User Manual
Mounting Accessories
✅ Why Choose Quick Sense?
Advanced 5.8GHz Microwave Radar Technology
Reliable 360° Motion Detection
Adjustable Detection Range & Delay Time
Automatic Day/Night Operation
Easy Wall & Ceiling Installation
Energy Saving & Maintenance Free
Suitable for Residential & Commercial Applications
Specifications
| Brand | Unbranded |
|---|---|
| Model | QS/M1-ST/WB |
| Warranty | 18 Months |
| Indoor Use | Yes |
| Application | Automatic Lighting Control |
| Installation | Wall / Ceiling Mount |
| Product Type | Microwave Radar Motion Sensor Switch |
| Detection Angle | 360° |
| Detection Technology | 5.8GHz Microwave Radar |
| Colour | White |
| Frequency | 50Hz |
| Time Delay | Adjustable (10 Seconds – 15 Minutes) |
| Motion Speed | 0.6–1.5 m/s |
| Mounting Type | Ceiling / Wall |
| Operating Mode | Automatic |
| Detection Angle | 360° |
| Operating Voltage | AC 220–240V |
| Power Consumption | 0.9W |
| Protection Rating | IP20 |
| Recommended Range | 1–8m |
| Detection Distance | Adjustable (Approx. 3–10m Radius) |
| Transmission Power | <10mW |
| Installation Height | 1.5–3.5m |
| Microwave Frequency | 5.8GHz CW Radar (ISM Band) |
| Rated Load (LED/CFL) | 300W |
| Ambient Light Setting | <10–2000 Lux Adjustable |
| Rated Load (Incandescent) | 1200W |
