5.8GHz Microwave Radar Motion Sensor Switch, 180°, 5-15m, IP65 Waterproof, 1200W, Adjustable Delay Outdoor
5.8GHz Outdoor Microwave Radar Motion Sensor | 180° Detection, 5–15m Range & IP65 Waterproof
- Brand
- Unbranded
- SKU
- QS/M7-ST/WB
- Warranty
- 18 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product

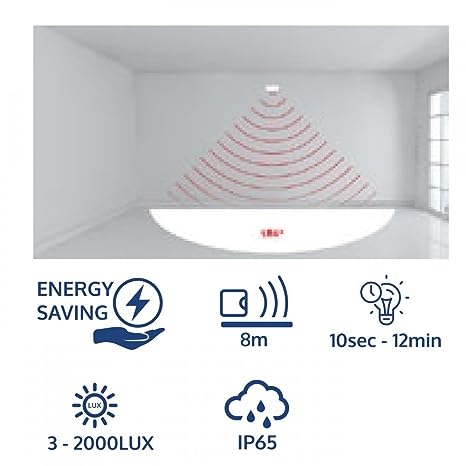

The QS/M7-ST/WB 5.8GHz Microwave Radar Motion Sensor Switch is a weather-resistant automatic lighting controller featuring 180° detection, adjustable 5–15m sensing range, IP65 waterproof protection, 1200W load capacity, adjustable delay, and day/night operation.
5.8GHz Microwave Radar Motion Sensor Switch – IP65 Waterproof
The QS/M7-ST/WB is a professional outdoor microwave radar motion sensor switch designed for reliable automatic lighting control in residential, commercial, and industrial environments. Powered by advanced 5.8GHz microwave radar technology, it accurately detects human movement and automatically switches connected lights ON and OFF to improve security while reducing electricity consumption.
Its IP65 weatherproof housing makes it suitable for outdoor installations, while the adjustable sensing distance, time delay, and ambient light settings allow the sensor to be customized for different applications such as entrances, parking areas, pathways, warehouses, and building exteriors.
⭐ Key Features
✔ 5.8GHz Microwave Radar Detection Technology
✔ IP65 Waterproof Outdoor Design
✔ 180° Wide Detection Coverage
✔ Adjustable Detection Distance (5–15 Metres)
✔ 1200W Maximum Load Capacity
✔ Adjustable Time Delay (10 Seconds – 12 Minutes)
✔ Adjustable Day & Night (LUX) Sensor
✔ Adjustable Detection Sensitivity
✔ Low Microwave Transmission Power (<0.2mW)
✔ Energy Saving Automatic Lighting Control
✔ Easy Wall Mount Installation
⚡ Intelligent Microwave Motion Detection

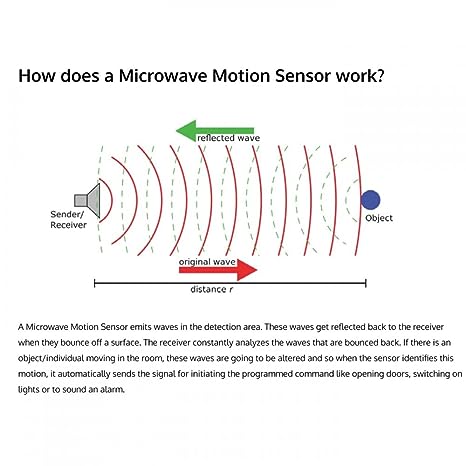

The built-in 5.8GHz microwave radar continuously monitors the protected area. Once movement is detected, the connected light switches ON instantly. If additional movement is detected before the timer expires, the countdown automatically restarts, ensuring continuous lighting while the area remains occupied.
🌙 Smart Day & Night Operation
The adjustable LUX control enables the sensor to operate only during darkness or throughout the day. This intelligent feature prevents unnecessary lighting during daylight hours and improves energy efficiency.
⚙ Fully Adjustable Controls
Detection Distance Adjustment
Detection Sensitivity Adjustment
Time Delay Adjustment
Ambient Light (LUX) Adjustment
🌧 Built for Outdoor Applications
The IP65-rated enclosure protects the sensor against rain, dust, and harsh outdoor conditions, making it an excellent choice for building exteriors, parking areas, entrances, pathways, gardens, loading bays, and commercial facilities.
🏢 Recommended Applications
Outdoor Entrances
Parking Areas
Garden Lighting
Building Exteriors
Warehouses
Factories
Driveways
Pathways
Commercial Buildings
Loading Bays
Security Lighting
Residential Villas
📦 Package Contents
1 × QS/M7-ST/WB Microwave Motion Sensor
Mounting Accessories
User Instruction Manual
✅ Why Choose Quick Sense QS/M7?
Advanced 5.8GHz Microwave Radar Technology
IP65 Waterproof Construction
Long Detection Range up to 15 Metres
Automatic Day & Night Operation
Adjustable Delay & Sensitivity
Energy Efficient Outdoor Lighting Automation
Reliable Performance in All Weather Conditions
Specifications
| Time Delay | 10 Seconds – 12 Minutes |
|---|---|
| Detection Distance | Adjustable |
| Ambient Light (LUX) | <3–2000 Lux Adjustable |
| Detection Sensitivity | Adjustable |
| Wiring | Live, Neutral & Load |
| Installation Type | Surface Wall Mount |
| Recommended Installation Height | 6A Fuse / MCB |
| Brand | Unbranded |
| Model | QS/M7-ST/WB |
| Colour | White |
| Warranty | 18 Months |
| Application | Outdoor Automatic Lighting Control |
| Product Type | Microwave Radar Motion Sensor Switch |
| Mounting Type | Surface Wall Mount |
| Detection Angle | 180° |
| Protection Rating | IP65 Waterproof |
| Sensor Technology | 5.8GHz CW Microwave Radar |
| Motion Speed | 0.6–1.5 m/s |
| Detection Angle | 180° |
| Sensor Technology | 5.8GHz CW Radar (ISM Band) |
| Detection Distance | Adjustable |
| Installation Height | 1.5–3.5 Metres |
| Detection Through Thin Materials | Yes |
| Dust Resistant | Yes |
| Waterproof Rating | IP65 |
| Weather Resistant | Yes |
| Automatic Restart Timer | Yes |
| Continuous Motion Timing | Yes |
| Operating Voltage | AC 220–240V |
| Power Consumption | Approx. 0.9W |
| Operating Frequency | 50/60Hz |
| Maximum Load (Incandescent) | 1200W |
| Microwave Transmission Power | <0.2mW |
| Maximum Load (Energy Saving / LED) | 300W |
