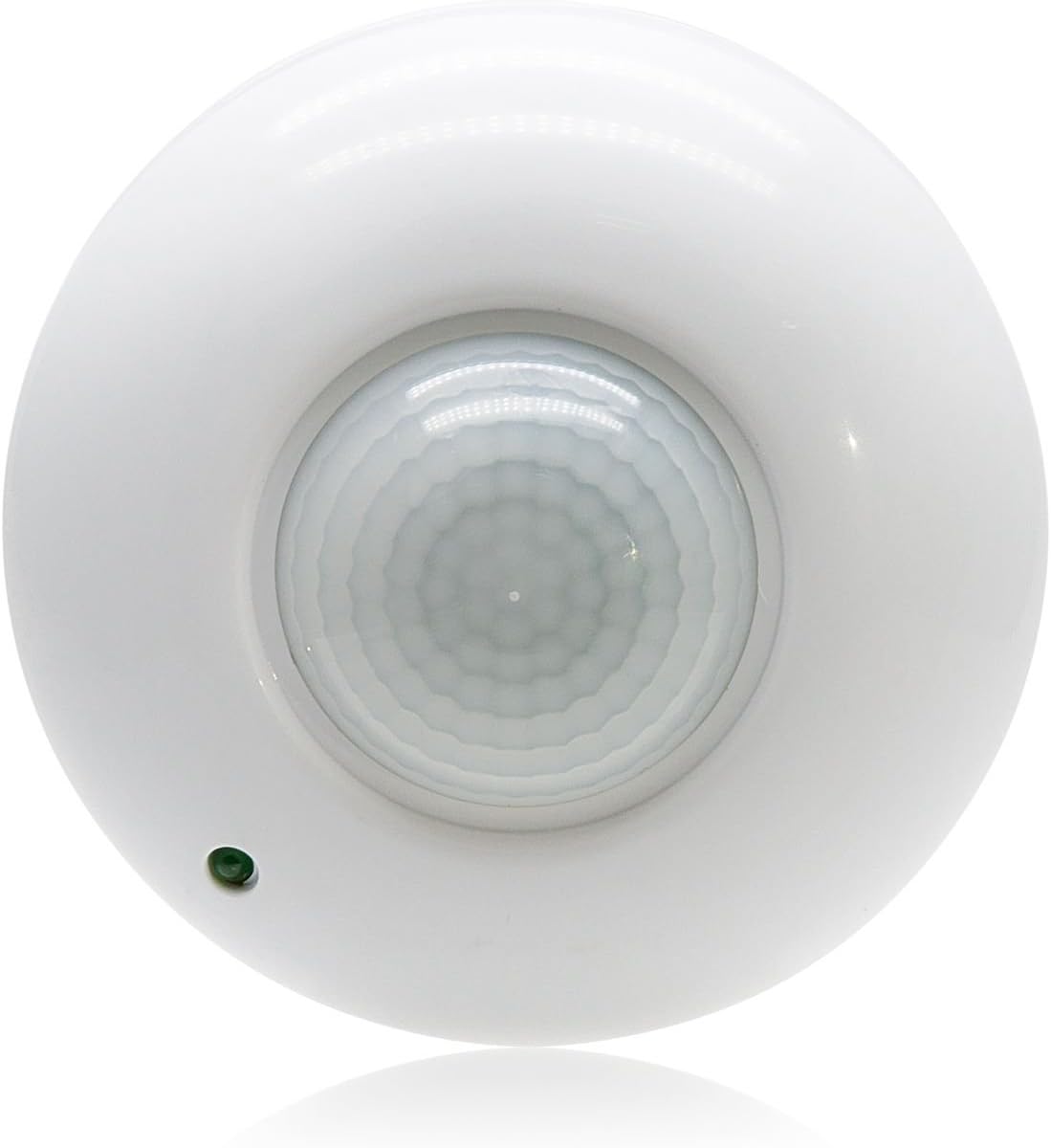

360° Ceiling PIR Motion Sensor Switch, 6m, 1200W High Load, Day Night Auto, Adjustable Delay, AC 220-240V
360° Ceiling Motion Sensor – Automatic Lighting & Energy Saving
- Brand
- Unbranded
- SKU
- QS/07/WB
- Warranty
- 18 Months Replacement Warranty Against Manufacturing defects
Business pricing
Pricing is shown to registered businesses and is not published here. Sign in to view the price for this product, or apply for a business account — every order is invoiced with GST.
About this product
The QS/07/WB 360° Ceiling PIR Motion Sensor Switch automatically controls lighting using advanced PIR technology. Featuring 360° detection, up to 6m sensing distance, 1200W high load capacity, adjustable time delay, day/night operation, and AC 220–240V compatibility.
360° Ceiling PIR Motion Sensor Switch – High Load Series
The QS/07/WB Ceiling PIR Motion Sensor Switch is a high-performance automatic lighting controller designed for residential, commercial, and industrial applications. Using advanced Passive Infrared (PIR) technology, it detects human movement and automatically switches connected lights ON and OFF, improving convenience while reducing unnecessary energy consumption.
With 360° full-area detection, a maximum sensing distance of 6 metres, high switching capacity, adjustable ambient light settings, and adjustable time delay, the QS/07/WB is ideal for corridors, offices, warehouses, staircases, basements, reception areas, and indoor commercial lighting.
⭐ Key Features
✔ 360° Wide PIR Motion Detection
✔ High Load Capacity up to 1200W
✔ Maximum Detection Distance up to 6 Metres
✔ Automatic Day & Night Operation
✔ Adjustable Ambient Light (LUX)
✔ Adjustable Time Delay (10 Seconds – 7 Minutes)
✔ Low Standby Power Consumption
✔ Ceiling Mount Installation
✔ Continuous Motion Detection Reset
✔ Energy Saving Automatic Lighting Control
⚡ Intelligent PIR Motion Detection
The built-in PIR sensor detects infrared radiation emitted by moving people. When movement is detected within the sensing area, the connected light switches ON immediately. If further movement is detected before the timer expires, the delay timer automatically restarts to keep the lights ON while the area remains occupied.
🌙 Automatic Day & Night Operation
The adjustable LUX control allows the sensor to operate throughout the day or only during darkness, depending on your selected setting. This ensures efficient lighting operation while minimizing unnecessary power consumption.
⏱ Adjustable Time Delay
The delay time is fully adjustable from 10 seconds (±3 seconds) up to 7 minutes (±2 minutes), allowing customization for different installation environments and user preferences.

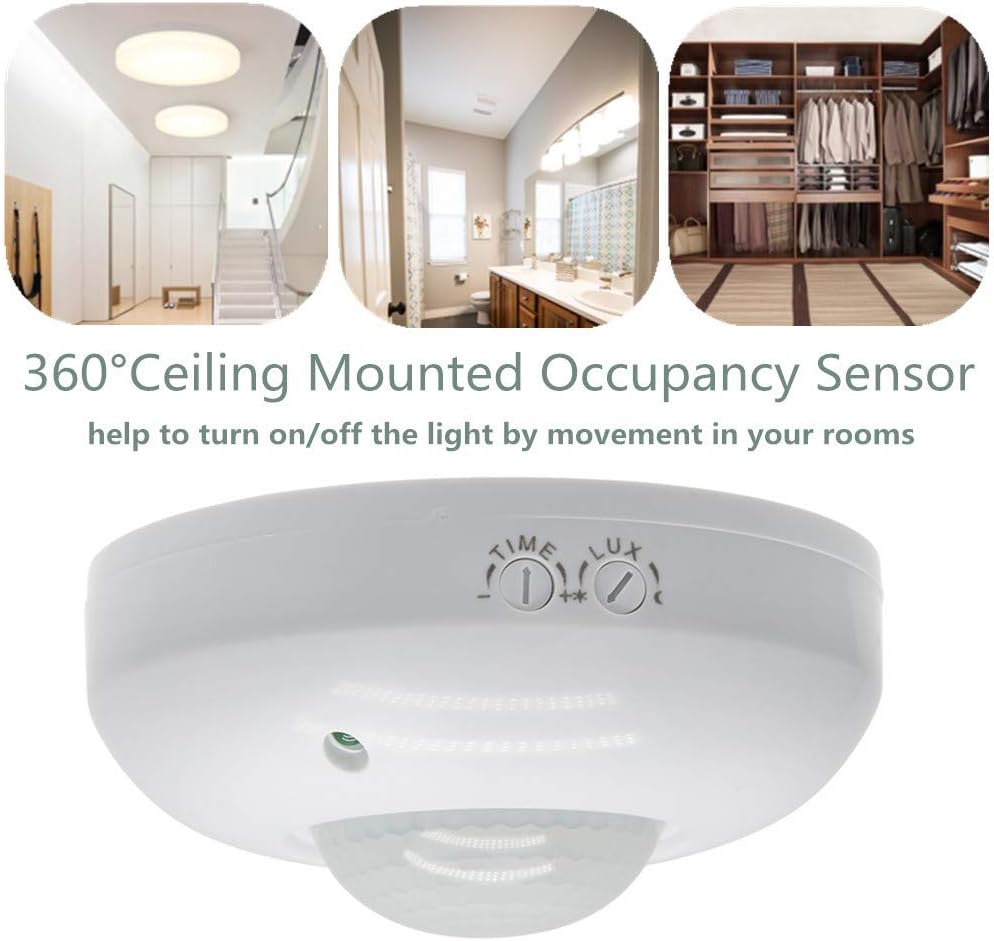

🏢 Recommended Applications
Homes & Apartments
Offices
Corridors
Hallways
Warehouses
Reception Areas
Staircases
Basements
Commercial Buildings
Storage Rooms
📦 Package Contents
1 × QS/07/WB PIR Motion Sensor
Mounting Hardware
Instruction Manual
✅ Why Choose Quick Sense QS/07?
Reliable 360° PIR Motion Detection
1200W High Load Capacity
Automatic Day & Night Operation
Adjustable Delay & Ambient Light Settings
Easy Ceiling Installation
Low Power Consumption
Ideal for Residential & Commercial Applications
Specifications
| Time Delay | 10 Seconds (±3s) to 7 Minutes (±2min) |
|---|---|
| Ambient Light (LUX) | <3–2000 Lux Adjustable |

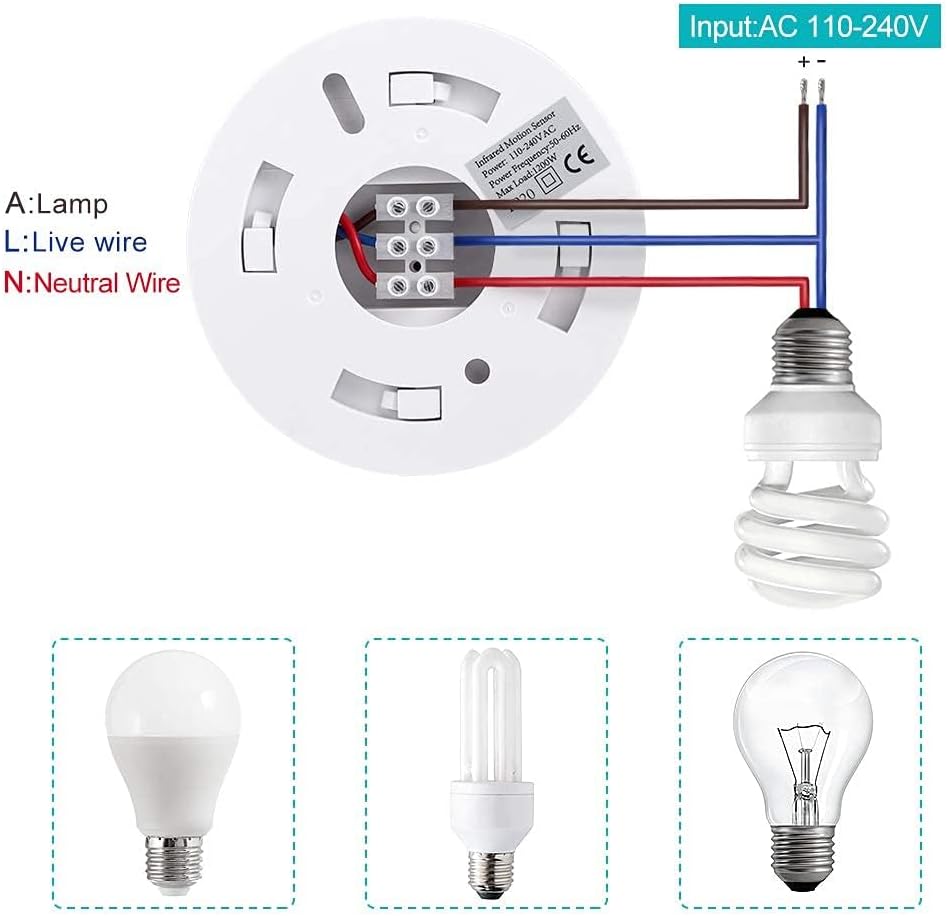

| Wiring | Live, Neutral & Load |
| Warm-up Time | Approx. 30 Seconds |
| Installation Type | Surface Ceiling Mount |
| Recommended Protection | 6A Fuse / MCB |
| Recommended Installation Height | 2.2–4 Metres |
| Model | QS/07/WB |
| Colour | White |
| Warranty | 18 Months |
| Application | Automatic Indoor Lighting Control |
| Product Type | Ceiling PIR Motion Sensor Switch |
| Mounting Type | Surface Ceiling Mount |
| Detection Angle | 360° |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Passive Infrared (PIR) |
| Detection Angle | 360° |
| Installation Height | 2.2–4 Metres |
| Detection Motion Speed | 0.6–1.5 m/s |
| Maximum Detection Distance | 6 Metres (Below 24°C) |
| Operating Voltage | AC 220–240V |
| Power Consumption | Approx. 0.5W |
| Operating Frequency | 50/60Hz |
| Rated Load (Incandescent Lamp) | Max. 1200W |
| Rated Load (Energy Saving Lamp / LED) | Max. 300W |
| Operating Humidity | <93% RH |
| Operating Temperature | -20°C to +40°C |
